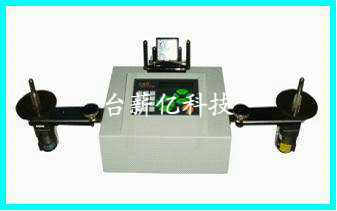

JF-1000

產品描述:

在線咨詢

特點:

1. 全自動方式計算零件數量,方便點料、發料作業。

2. 獨具匠心的防料帶脫落設計。

3. 可預設數量。

4. 采用繪圖型LCD顯示器。

5. 可加裝條形碼機,方便管理作業。

6. 專利的反光鏡片,人性化的操作平臺設計。

7.  另有側漏功能,為選購配備,歡迎洽詢。

Features :

1.count automatically the quantity of parts, easy for counting and providing materials.

2.A  material missing protection device form running is provided.

3.Both the front and preset the quantity counter.

4.A drawing type LCD screen is fitted .

5.A bar code device supplied as optional and easy for operation control.

6.Have the patent glisten mirror and personable operating platform design.

適用產品:

1. SMD料帶式零件皆可用。

2. 料帶輪(RELL)直徑:任何尺寸皆可適用。

3. 料帶寬度(WIDTH):8,12,16,24,32,44,56mm.

4. 料帶間隔(PITCH):2,4,8,12,16,20,24,28,32,36,

40,44,48,52,56mm.

Application:

1.SMD reel parts all suitable.

2.Reel diameter: assorted sizes are usable.

3.Reel width: 8,12,16,24,32,44,56mm.

4.Reel pitch: 2,4,8,12,16,20,24,28,32,36,40,44,48,52,56mm.

產品規格:

1. 電源:AC 220V50HZ)。

2. 額定功率:約30W

3. 計數數量:1~50000PCS

4. 外型尺寸:L450*W180*H270mm

5. 重量:7kg

The size:

1.Electric power: AC 220V (50HZ)

2.Electric load: 3W

3.Count capacity: 1~50000pcs

4.outer dimension: L450*W180*H270mm

5.weight: 7kg
